When dealing with high-precision mechanical components, the ability to accurately reproduce a part is critical to maintaining operational efficiency. Gemini Technical Services, GEMT, a company specializing in technical and engineering solutions for defense, aerospace, and industrial applications, encountered a significant challenge: a worm gear essential to their operations needed to be replaced, but no CAD models or design documentation were available.
Due to the highly specialized function of worm gears—where precision tolerances dictate performance—traditional precision reverse engineering methods were not viable.
To ensure an exact match, GEMT partnered with Tangent Solutions, leveraging advanced 3D laser scanning and reverse engineering to create a high-precision digital model for manufacturing.
The Challenge: Reproducing a High-Tolerance Worm Gear

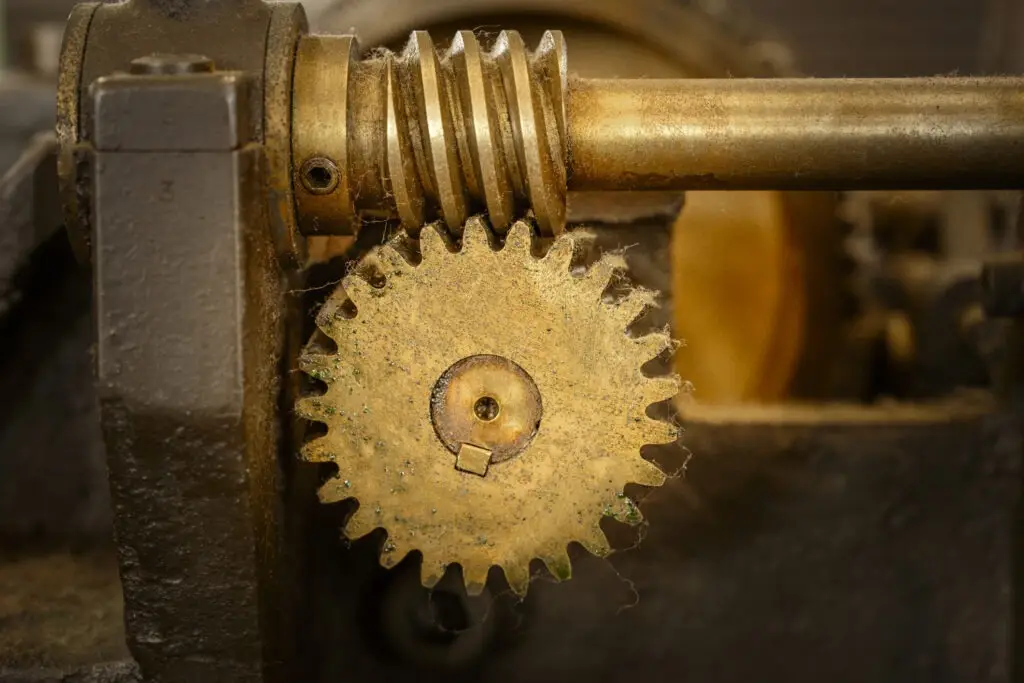

Worm gears are critical components in machinery that require smooth and controlled motion transfer. Their unique design allows for high torque transmission in compact spaces, making them ideal for applications where space is limited.
Additionally, they provide non-reversible motion, which ensures stability in mechanical systems by preventing back-driving. Worm gears also enable precise control over rotational speed and force, allowing for efficient and accurate power transmission.
However, due to their helical engagement and specific tooth geometry, worm gears require extremely tight tolerances to function correctly. Even minor deviations in their design or manufacturing can lead to issues such as excessive wear, increased noise, or mechanical failure under load.
Ensuring precision in their production and maintenance is essential for long-term reliability and performance.
GEMT faced the following challenges:
- The original CAD files and engineering drawings were unavailable, making it impossible to reference existing design data.
- The gear’s complex geometry made manual measurement impractical, as traditional methods could not capture its intricate details with sufficient accuracy.
- Maintaining precision tolerances was crucial to ensuring the gear’s proper function within the mechanical system.
- The gear needed to be replicated with exact accuracy for immediate use while also being cataloged for future manufacturing needs.
Given these challenges, a highly precise 3D scanning and reverse engineering approach was the only viable solution.
The Solution: 3D Laser Scanning for Precision Reverse Engineering
To capture the exact specifications of the worm gear, Tangent Solutions
utilized metrology-grade 3D laser scanning technology. Unlike traditional measurement methods, which can introduce human error, 3D scanning ensures a completely digital and highly accurate representation of the part.

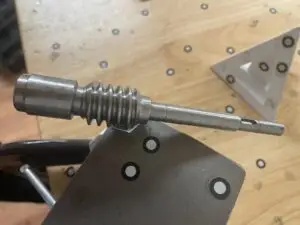

Step 1: High-Precision 3D Scanning
Using advanced laser scanning technology, our engineering team captured every surface detail of the worm gear with sub-micron accuracy. The scan created a high-resolution 3D point cloud, which provided a complete digital representation of the gear’s external and internal geometry.
Step 2: Reverse Engineering to CAD
Once the scan data was collected, our team utilized specialized reverse engineering software to convert the point cloud into a fully parametric CAD model. This process ensured the accurate recreation of the tooth profile, allowing for smooth engagement with mating components. It also guaranteed a precise fit within the larger mechanical system, ensuring seamless integration and proper functionality.
By replicating exact tolerances, the new design minimized the risk of premature wear or mechanical failure. Additionally, the model was optimized for manufacturing, reducing production risks and improving overall efficiency.
Step 3: Tolerance Validation and Quality Assurance
Since worm gears require precise alignment and load distribution, our engineers conducted geometric analysis to validate tolerances before finalizing the CAD model. This step ensured that the newly created design would match or exceed the specifications of the original component.
The Results: A Digital Model for Immediate and Future Use
The final CAD model provided GEMT with a production-ready digital file, enabling them to manufacture an exact replica of the worm gear with precision and efficiency. Additionally, by cataloging the part digitally, GEMT secured long-term benefits that would enhance their operations.
The digital model future-proofed their supply chain by ensuring a readily available design for future manufacturing needs. It also eliminated the risk of downtime associated with lost design data, allowing for seamless integration into CAD/CAM systems for more efficient production.
Most importantly, it provided a precise and repeatable solution, ensuring long-term operational efficiency.
With this high-accuracy reverse engineering process, GEMT was able to get back up and running without costly delays. In addition to the CAD model, 2D prints were also created to accompany the design, ensuring that
their manufacturer of choice had all the necessary documentation for precise production.
Why Reverse Engineering Is Essential for Legacy Components
Many industries still rely on legacy machinery and components that lack modern digital documentation. When these parts wear out or break, businesses are often left with costly downtime or expensive redesigns.
3D laser scanning and reverse engineering offer a solution by:
- Digitizing obsolete parts for seamless reproduction.
- Reducing the risk of measurement errors with non-contact scanning.
- Creating precise CAD models for immediate or future manufacturing.
- Ensuring compatibility with existing systems and tolerances.
Conclusion: Ensuring Precision with Tangent Solutions
By leveraging cutting-edge 3D scanning technology, Tangent Solutions helped GEMT accurately reproduce a critical worm gear, ensuring their operations could continue without interruption. Our expertise in reverse engineering and high-precision scanning enables companies across various industries to overcome challenges associated with outdated or undocumented components.
Whether you need to reproduce, modify, or catalog complex mechanical parts, Tangent Solutions provides engineering-grade accuracy and efficient digital solutions to keep your operations running smoothly.
Need to reverse engineer a critical component? Contact Tangent Solutions today to learn how we can help.
