In the increased precision of manufacturing, laser cutting has proven to be a revolutionary force. Another precise-providing tool is 3D laser scanning.
A 3D scan for laser cutting provides unmatched precision and intricate detail for the 3D files it creates, adding to the quality of laser cut parts.
How do you use a 3D scan for laser cutting? Why is it needed versus drawing in CAD software from scratch? Lets learn about leveraging 3D scanning to optimize the laser cutting process.
Understanding the Basics: Laser Cutting and File Types
Before delving into the intricacies of 3D scanning, let’s first grasp the fundamentals of laser cutting.
What is Laser Cutting?

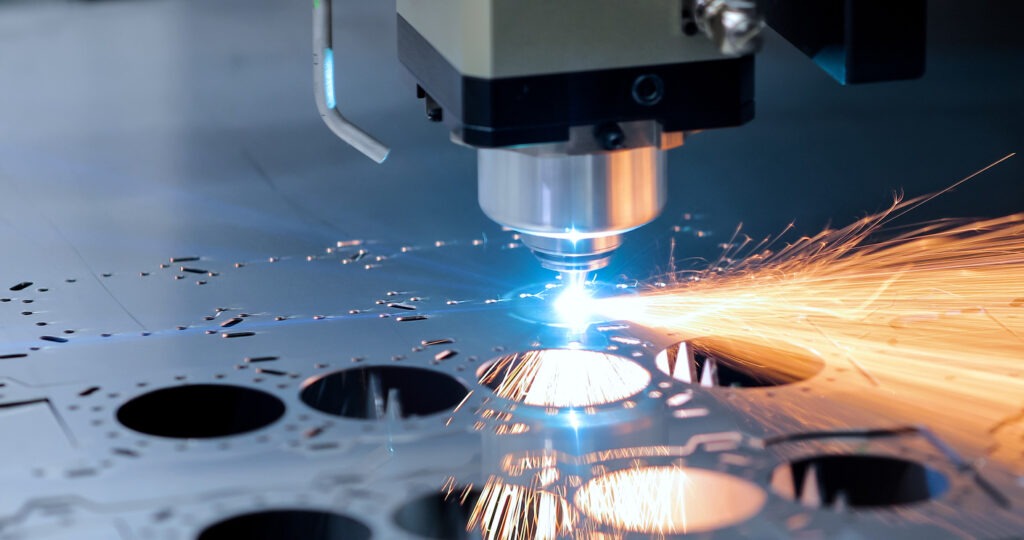

Laser cutting is a sophisticated manufacturing process that utilizes a laser beam to precisely cut or engrave materials. The technique involves directing a high-powered laser, typically CO2 or fiber lasers, onto the surface of the material.
The intense heat generated by the laser beam melts, burns, or vaporizes the material, leaving behind a precise and clean cut.
Laser cutting is widely employed for various materials, including metals, plastics, wood, and textiles, offering a level of accuracy and intricacy that traditional cutting methods may struggle to achieve.
This versatile technology finds applications in industries such as automotive, aerospace, electronics, and arts and crafts, enabling the creation of intricate designs and precise shapes with minimal material waste.
Laser cutting is a highly efficient and precise method used in manufacturing, where a laser beam is directed onto a material, usually metal, to cut through it with incredible accuracy.
To execute laser cutting seamlessly, specific file types are essential. Most laser cutting machines operate with vector files, commonly in formats like DXF (Drawing Exchange Format) or AI (Adobe Illustrator). These files contain the geometric information required for the laser cutter to follow precise cutting paths.
The Role of 3D Scans for Laser Cutting
Integrating 3D scanning into the laser cutting process elevates the precision and versatility of manufacturing. 3D laser scanning captures the intricate details of physical objects, allowing manufacturers to replicate or modify them with utmost accuracy.
The key to this synergy lies in the ability to generate compatible 3D files from the scanned data.
Making Files From a 3D Scan for Laser Cutting
The process begins with obtaining a high-quality 3D scan of the object you intend to replicate or modify.
In almost all cases of laser cutting, CAD files will be required to program the machine instead of mesh files. Scan data in STL format can be reverse engineered to create a 3D, parasolid.
Once you have your 3D scan, the next step is to convert it into a format compatible with laser cutting machines. This involves the use of CAD software, where you can refine and optimize the 3D model for precision cutting.
Modern 3D scanning technologies, such as structured light or blue light laser scanning, provide detailed and accurate scans of complex shapes and structures that can be reverse engineered to a CAD file.
Wondering what type of file you need? Take a look at our sample folder.
How to 3D Scan for Laser Cutting Specifically
When the project involves 3D scanning for laser cutting file creation, it’s crucial to accurately represent important geometry.
At Tangent Solutions, our technicians engage in discussions about project goals before initiating the scanning process to ensure the collection of correct data. This is particularly critical for manufacturing, as variations in hole size can significantly impact the entire production process.
Once the cleanup is finished, the technician will proceed to emphasize surfaces, establish planes, and define hole dimensions. All this data will be imported into reverse engineering software, marking the subsequent step in generating a CAD file for laser cutting.
The Reverse Engineering Process
Reverse engineering is a critical aspect of the 3D scanning and laser cutting workflow. This involves deconstructing the scanned object digitally to understand its design and structure.
Through this process, manufacturers can make modifications, improvements, or create replicas with enhanced precision.
During reverse engineering, CAD software plays a pivotal role. It allows designers to manipulate the 3D scan, adjusting dimensions, modifying features, and ensuring that the final product meets the desired specifications.
This iterative process ensures that the laser cutting machine receives precise instructions for optimal performance.
Converting CAD Files to Laser Cutting
When a CAD file is generated, it can then be forwarded to any operator for processing through their laser cutting program. Common exports from our company include STEP, IGES, and XT, which are universal file formats accessible to anyone with CAD software.
The choice of laser cutting program depends on the specific company. A frequently used software is Mastercam, compatible with various machines such as lathes, routers, 5-axis systems, mills, and more.
The CAD file derived from 3D scanning for laser cutting is imported, and the software instructs the machine on the necessary actions to produce the part. Reverse engineering is one of our most sought-after services in the business, reflecting our expertise in laser cutting processes.
One notable advantage of CAD files is the ability to swiftly modify the design. The operator might suggest a design adjustment to reduce production and material costs. Our design team can implement the changes and resubmit within a matter of minutes.
Best Practices for 3D Scanning and Laser Cutting
To achieve the best results when using 3D scans for laser cutting, follow these best practices:
1. High-Quality Scans:
Invest in advanced 3D scanning technology by either spending close to six figures on a scanning platform (you read that right) or partnering with a 3D scanning service provider.
2. Choose the Right File Formats:
Ensure that the 3D files are compatible with your laser cutting machine by using widely accepted formats STEP, IGES, or XT.
3. CAD Expertise:
Familiarize yourself with CAD software to refine and optimize 3D models for laser cutting.
4. Iterative Process:
Embrace the iterative nature of the reverse engineering process to fine-tune designs and achieve the desired outcome.
In most cases, clients require mesh to CAD conversion in order to have a modifiable CAD file.
5. Material Considerations:
Take into account the material properties when designing for laser cutting, as different materials may require specific cutting parameters.
Working with a 3D laser scanning provider who specializes in manufacturing, guarantees the designs are efficient in design for the laser cutting process.
Conclusion
In the realm of manufacturing, precision is non-negotiable. Leveraging 3D scans for laser cutting not only unlocks a new level of precision but also enhances the efficiency and versatility of the entire process.
By understanding the file types needed for laser cutting machines, mastering the art of 3D scanning, and embracing the reverse engineering process, manufacturers can truly unleash the power of precision in their endeavors.
Incorporate these practices into your workflow, and witness the transformative impact of 3D scanning on laser cutting precision.
