Reverse Engineering for CAD to Leverage Modern Design

In engineering and product design, the ability to extract precise geometry and dimensions from existing objects has revolutionized how professionals approach innovation, quality control, and manufacturing. Reverse engineering for CAD, Computer-Aided Design, serves as the bridge between physical components and digital models.

Technology like 3D laser scanning empowers engineers to create CAD models from scan data for a variety of applications. This process is essential for replicating, enhancing, or integrating components into larger systems with unmatched accuracy and efficiency.

The Role of 3D Scanning in Reverse Engineering

3D scanning is at the heart of reverse engineering workflows. By capturing the physical geometry of an existing part, 3D scanning generates point cloud data or a mesh that serves as the foundation for creating CAD files. Various 3D scanning technologies, including laser scanning, structured light, and photogrammetry, allow engineers to capture detailed representations of objects, regardless of complexity.

This 3D scan data is crucial for projects requiring precision, such as:

  • Designing components that seamlessly integrate with existing objects.
  • Restoring or improving damaged parts.
  • Cataloging legacy designs for which original CAD files no longer exist.

Key Steps in the Reverse Engineering Workflow

The reverse engineering process begins with scanning objects to capture their geometry. This step generates a 3D mesh or point cloud, which is then used to reverse engineer the object and create CAD models. Here’s a closer look at the steps involved:

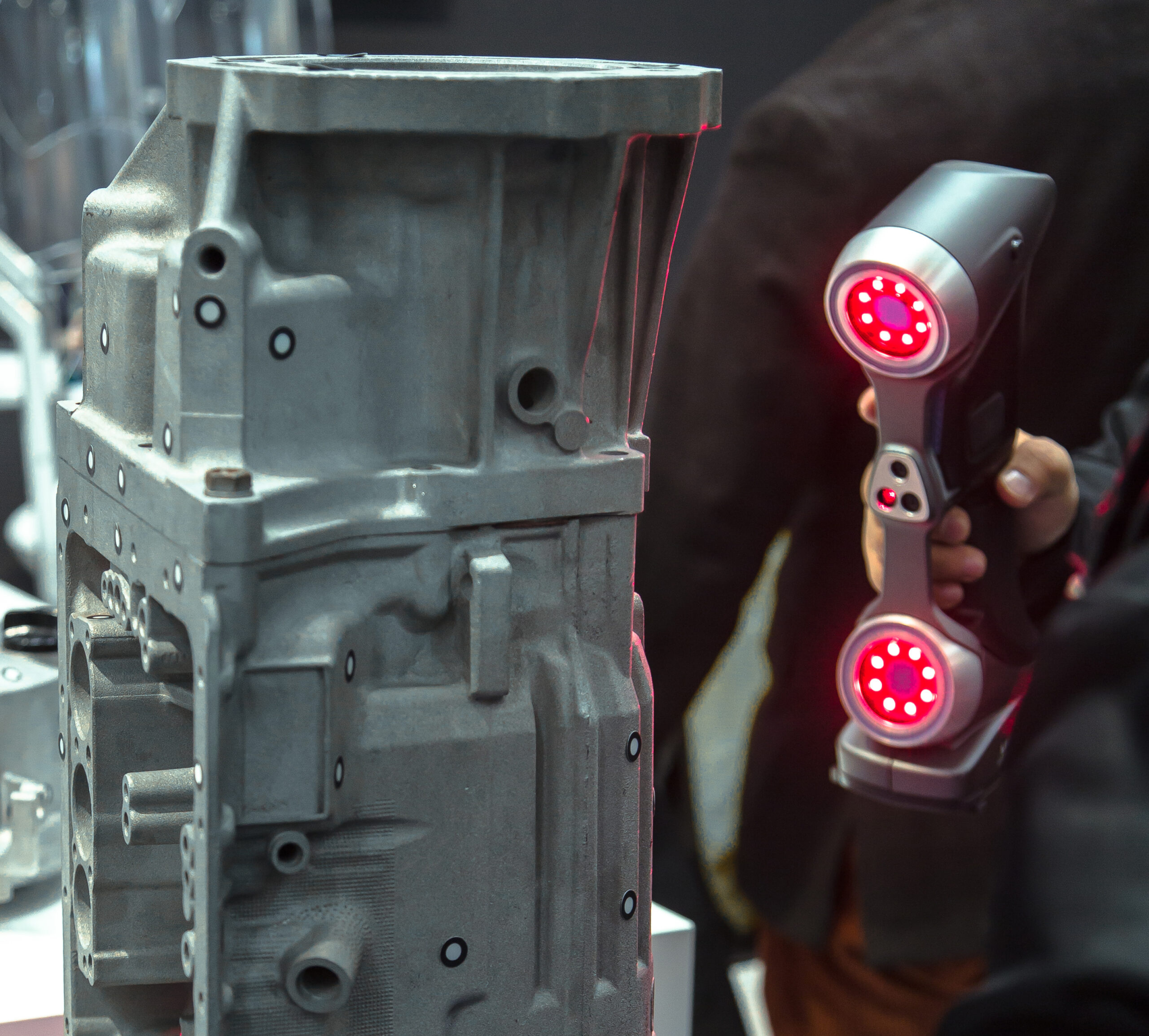

  1. 3D Scanning Objects
    Advanced scanning technologies, such as structured light or laser scanning, measure physical objects to generate highly accurate 3D representations. These scans capture fine details, including complex curves and minute features, which are essential for precise modeling.
  2. Processing 3D Scanning Data
    The raw output from 3D scanners is a mesh or point cloud, typically saved in formats like STL or OBJ. While these meshes are excellent for visualization or 3D printing, they lack parametric data, making them unsuitable for direct modifications in CAD software.
  3. 3D Scan to CAD Conversion what is a cad engineer
    To create fully functional CAD models, design engineers use the scanned data as a reference. Through specialized CAD software, geometric entities and features are constructed to replicate the object’s design intent. This conversion process ensures the resulting CAD files are dimensionally accurate and manufacturable.
  4. Refining the CAD Model
    Once the initial model is created, engineers can make modifications, introduce design improvements, or repair faults in the original part. This step transforms the model into a versatile digital asset ready for use in manufacturing or product development.

Applications of 3D Scanning to Reverse Engineer for CAD Models

The reverse engineering process is indispensable in industries where precision and adaptability are paramount. Some key applications include:

  • Product Design and Development
    Engineers can use reverse engineering to analyze existing parts, incorporate complex surfaces, and optimize designs. By digitizing physical components, they can create CAD models for new designs or adapt existing ones for enhanced functionality.
  • Manufacturing and Prototyping
    CAD models derived from 3D scans can be used to drive advanced manufacturing processes like 3D printing, CNC milling, and laser cutting. These models ensure that the final product adheres to exact specifications.
  • Legacy Part Reproduction
    When original CAD files or technical drawings are unavailable, reverse engineering provides a reliable method to recreate components. This is particularly useful for parts that have been discontinued or damaged.
  • Quality Control and Inspection
    By comparing scanned data to CAD models, engineers can identify deviations, ensure dimensional accuracy, and verify that products meet design tolerances.

Meshes vs. Solid Models

Understanding the distinction between meshes and solid models is crucial for reverse engineering workflows.

  • Meshes
    Generated directly from 3D scanning, meshes represent the object’s surface as a collection of triangles. These files are ideal for visualization and 3D printing but lack the parametric data necessary for precise modifications.
  • Solid Models
    Created through reverse engineering, solid models contain parametric information, making them fully functional for CAD applications. These models allow for detailed modifications, such as altering dimensions or adding new features, enabling seamless integration into manufacturing workflows.

A common misconception about 3D scanning is that scan data will be instantly turned into CAD. This is unfortunately not the case. Although a possibility for the future, there is not a scanner native software that will convert the data automatically and thus, must be reverse engineered using a mesh as a guide.

For a further explanation, this is a write up on that process: Can a 3D Scanner Complete Scan to CAD Conversion, Instantly?

Leveraging Data to Reverse Engineer for CAD

Reverse engineering for CAD offers several benefits, including:

  1. Time Efficiency
    The ability to generate CAD files from 3D scan data significantly reduces the time needed to design from scratch.
  2. Accuracy
    Scanning ensures that even the most complex geometries are captured with precision, providing a reliable foundation for CAD modeling.
  3. Flexibility
    Reverse-engineered CAD models can be modified, analyzed, and optimized to suit various applications, from prototyping to mass production.
  4. Cost Savings
    By digitizing existing parts, engineers can avoid costly errors and reduce material waste during production.

The Future of Reverse Engineering

Advancements in scanning technologies, such as structured light and laser scanning, continue to enhance the accuracy and efficiency of reverse engineering workflows. Additionally, the integration of AI and machine learning in CAD software is streamlining the process of converting 3D scan data into parametric models.

Whether you need to reproduce an existing part, improve product design, or create prototypes, reverse engineering for CAD remains an invaluable tool for modern engineering. By partnering with experienced 3D scanning service providers, such as Tangent Solutions, businesses can unlock new levels of innovation and efficiency in their operations.

Reverse engineering is not just a process—it’s a gateway to endless possibilities in design and manufacturing.

Sean Kepler

Sean is lead engineer with his previous career stemming from mechanical engineering, automotive dynamics, and aerospace. Pulling from real-world experience, he has over 15 years of experience as a designer and in fabrication. Before creating Tangent Solutions, Sean was the lead designer for many winning off-road race teams as well as mass-market production companies
